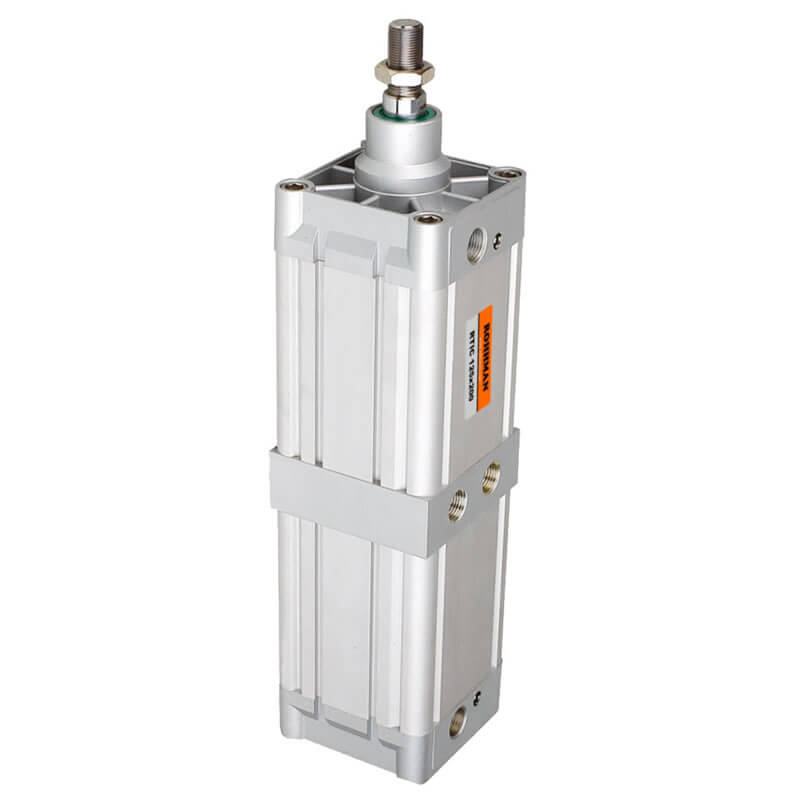

Ø32 Alüminyum Gövde Manyetik Yastıklı Tandem Silindir [CLONE] [CLONE]

0.00
(0 reviews) Write a review
RTIC-4
5.39156

+
Add to cart
Shipping Costs
  • 10 €  BURSA
  • 20 ₺ İSTANBUL
Cancellation and Refund
  • Delivery times vary depending on the type of your order.
  • Imported, manufactured, electronic products are not included in the return scope.
  • You can return it within 15 days in accordance with the return conditions.
Our Return and Cancellation Policy
İnformations
Ürün ile ilgili soru sorun.
Teknik Özellikler
  Akışkan  : Hava
  Çalışma Voltaj Aralığı  : 1-9,0 kgf/cm²
  Max. Basınç dayanıklılığı  : 13,5 kgf/cm²
  Çalışma Sıcaklığı  : 0-70 ºC
  Çalışma Hızı  : 50-800 mm/sec

 Tandem Drawing

Çap A B C D E F G H I J K L
32 209 16 42 30 32 10 25 22 17 6 M10x1.25 M6
40 234.5 20 46 35 34 10 29.5 24 17 7 M12x1.25 M6
50 253 27 46 40 42 10 32 32 23 8 M16x1.5 M8
63 276 26 50 45 42 10 36 32 23 8 M16x1.5 M8
80 307 35 56 45 52 10 37 40 26 10 M20x1.5 M10
100 328 40 68 55 52 10 39 40 26 10 M20x1.5 M10

 125

 389

 45

 79.5

 60

 74

 12

 45

 54

 40

 12.5

 M27x2

 M12


Çap M N O P Q R S T U V W X Y Z  N1
32 12 15 G1/8 5 3 6.5 45 32.5 12 10 28 4 46 58.7  12.5
40 12 17.5 G1/4 7 3 7 52 38 16 13 33 4 53.7 68  14.75
50 12 21 G1/4 7 3 9 65 46.5 20 17 38 4 65.8 84.5  16
63 12 23 G3/8 8 5 9 76 56.5 20 17 40 4 79.9 99.6  18
80 15 24 G3/8 10 5 12 94 72 25 22 43 5 101.8 123.8  18.5
100 15 26 G1/2 10 5 14 112 89 25 22 47 6 125.9 148.9  19.5

 125

 20

 31

 G1/2

 10.5

 5

 15

 134

 110

 32

 27

 53.5

 5

 155

 178

 22.5
