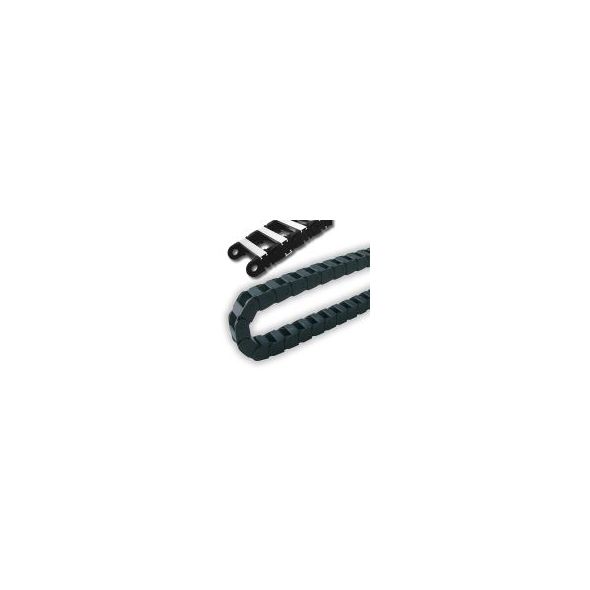

HAREKETLİ KABLO TAŞIYICISI ALÜMİNYUM KAPAKLI PLASTİK
SERİ NO 60 80 120 80 170-220-285
| MMG060080R |
| MMG060090R |
| MMG060100R |
| MMG060120R |
| MMG060140R |
| MMG060150R |
| MMG060160R |
| MMG060180R |
| MMG060200R |
| Ölçüler mm cinsindendir. | |||
| Seri numarası sonuna seçilen radüs değeri ilave edilecektir.Örnek:MMG060120R220 | |||
|
|
||||||||
| AYAK BAĞLANTI EKSEN ÖLÇÜLERİ | ||||||||
| SERİ NO | C | T | ||||||
| MMG060080 | 120 | 100 | ||||||
| MMG060090 | 130 | 110 | ||||||
| MMG060100 | 140 | 120 | ||||||
| MMG060120 | 160 | 140 | ||||||
| MMG060140 | 180 | 160 | ||||||
| MMG060150 | 190 | 170 | ||||||
| MMG060160 | 200 | 180 | ||||||
| MMG060180 | 220 | 200 | ||||||
| MMG060200 | 240 | 220 | ||||||
| R(mm) | X(mm) | Z(mm) | D(mm) | |
| 220 | 520 | 100 | 80 | |
| 170 | 420 | 100 | 80 | |
| 285 | 620 | 100 | 80 |
| R(mm) | X(mm) | Y | M(mm) | Y(mm) | ||||||||
| L= KULLANILACAK MİKTAR | 170 | 420 | 735 | 310 | 735 | |||||||
| K= HAREKET MESAFESİ | L=K/2+Y (mm) | 220 | 520 | 860 | 360 | 890 | ||||||
| Y= YUVARLANMA BOYU | 285 | 620 | 1095 | 410 | 1095 | |||||||
